Plate & block magnetic

Filtering out unwanted ferromagnetic particles

Plate magnets are cost-effective, robust magnets with a deep, powerful magnetic field. They are therefore suitable for removing medium to large ferromagnetic (Fe) particles from raw materials.

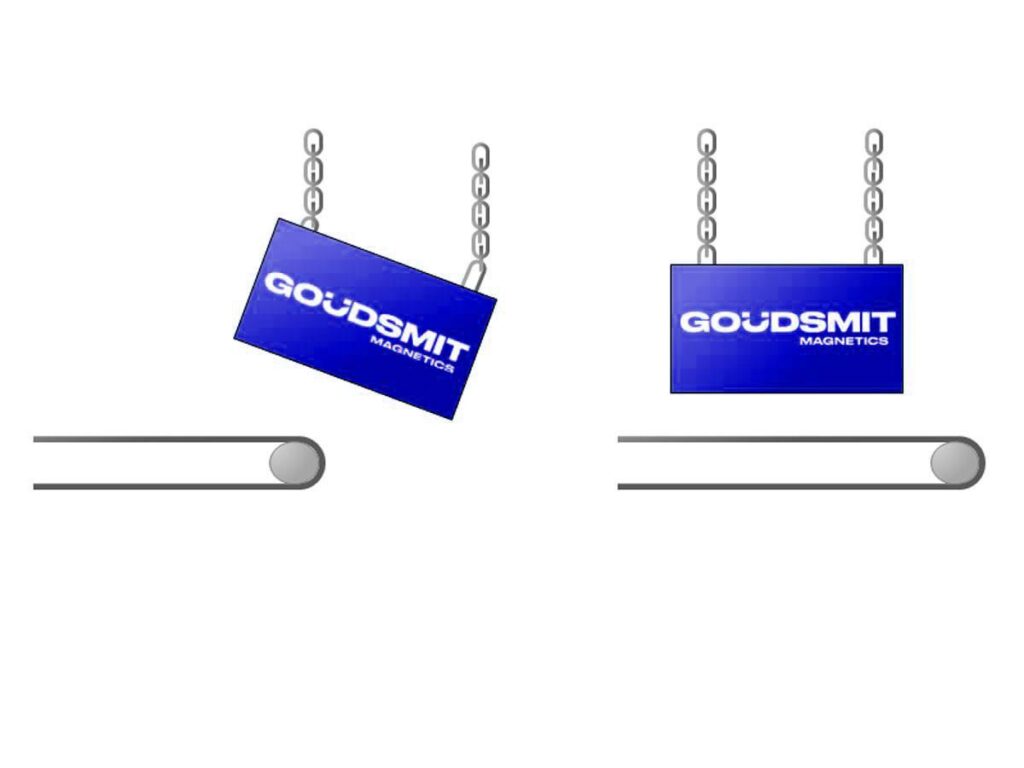

They can be easily installed in conjunction with existing setups. They can hang above a conveyor belt, be mounted on the side of a product channel, or installed beneath a passing product stream.

Plate/block magnets are also the building blocks in Goudsmit’s magnetic separation systems for relatively coarse product streams and large capacities. For instance, as part of Goudsmit’s chute magnets, external pole magnets, cascade magnets, and overband magnets.

  • Cost-effective and robust
  • Max. holding field 180 mm
  • Captures Fe particles from 30 µm
  • Equipped with neodymium or ferrite magnets
  • Manual cleaning (wiping)

Plate Magnets

Neodymium plate magnets

Neodymium plate magnets are extremely powerful, compact, and lightweight. They are suitable for separating ferrous impurities from 30 µm to 3 mm. They are made of stainless steel and are waterproof. They are suitable for use in the food industry. They are manually cleaned (wiped).

  • Neodymium GSN-35
  • Br. 11,200 gauss (at 20°C), Tmax. 80°C
  • Captures Fe particles from 30 µm
  • Manual cleaning (wiping)
  • Max. holding field 180 mm



For further information, please visit www.goudsmitmagnets.com

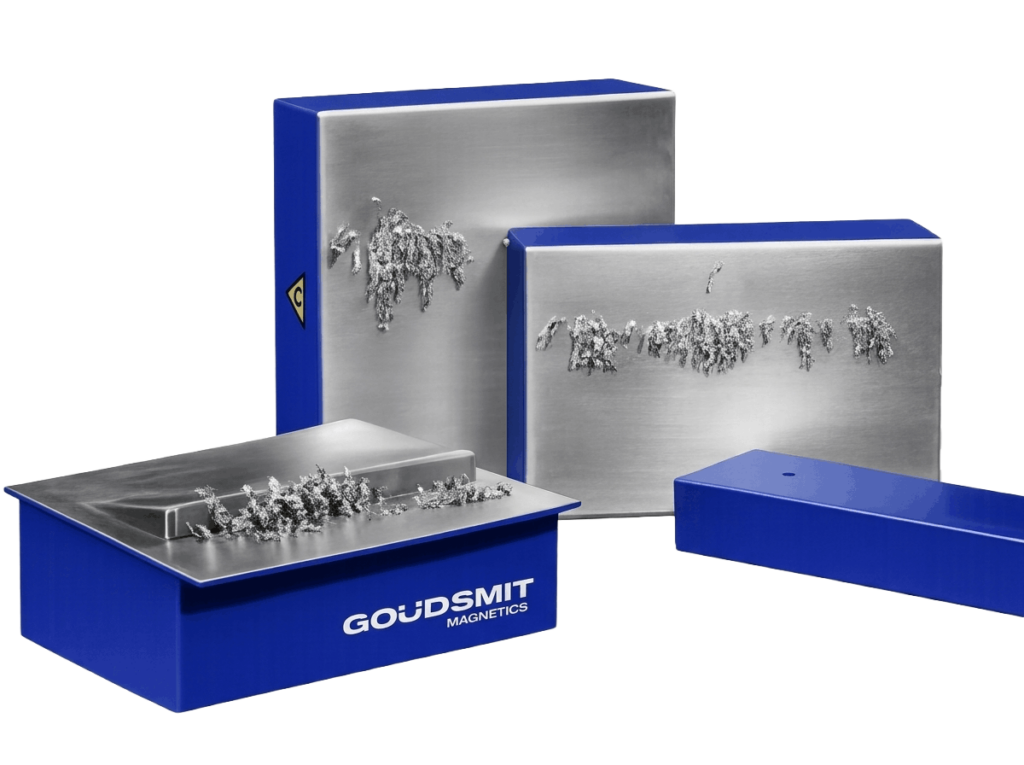

Ferrite plate magnets

Ferrite plate magnets are more affordable, less powerful, and larger compared to Neodymium plate magnets. They can be used at temperatures up to 100°C. They remove ferrous impurities from 0.5 mm. They are not suitable for weakly magnetic stainless steel.

  • Magnet quality ferrite GSFD-33 (Br. 4100 gauss)
  • Captures Fe particles from 0.5 mm
  • Manual cleaning (wiping)
  • Max. temp. 100°C
  • Max. holding field 140 mm



For further information, please visit www.goudsmitmagnets.com

Block magnets

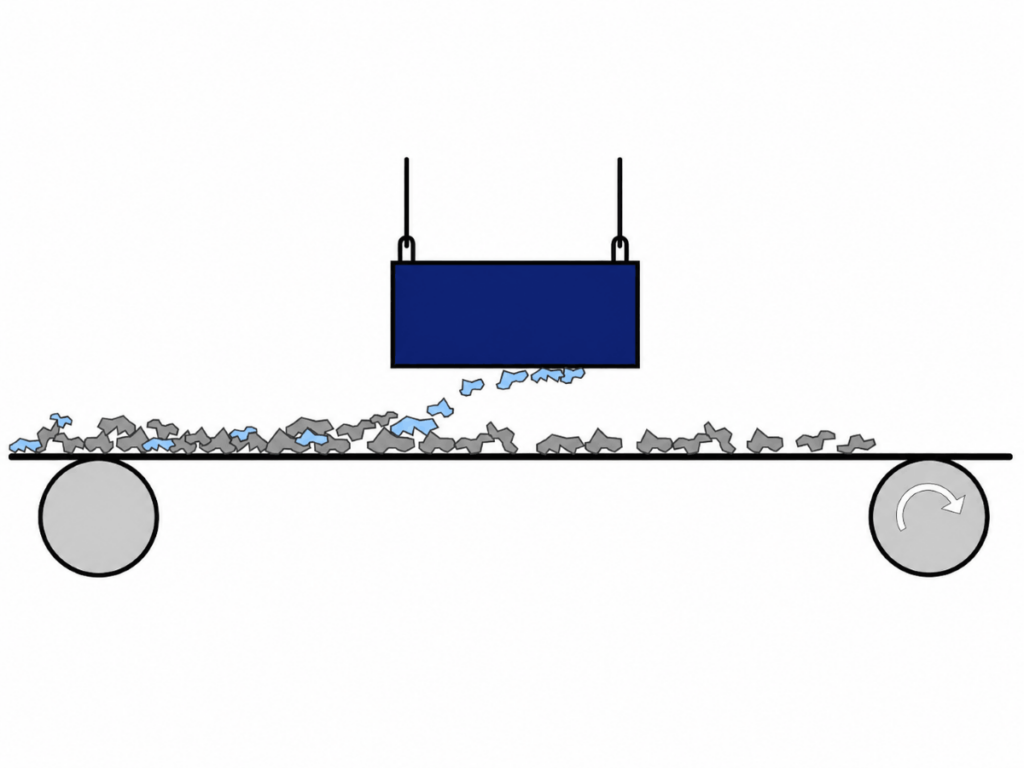

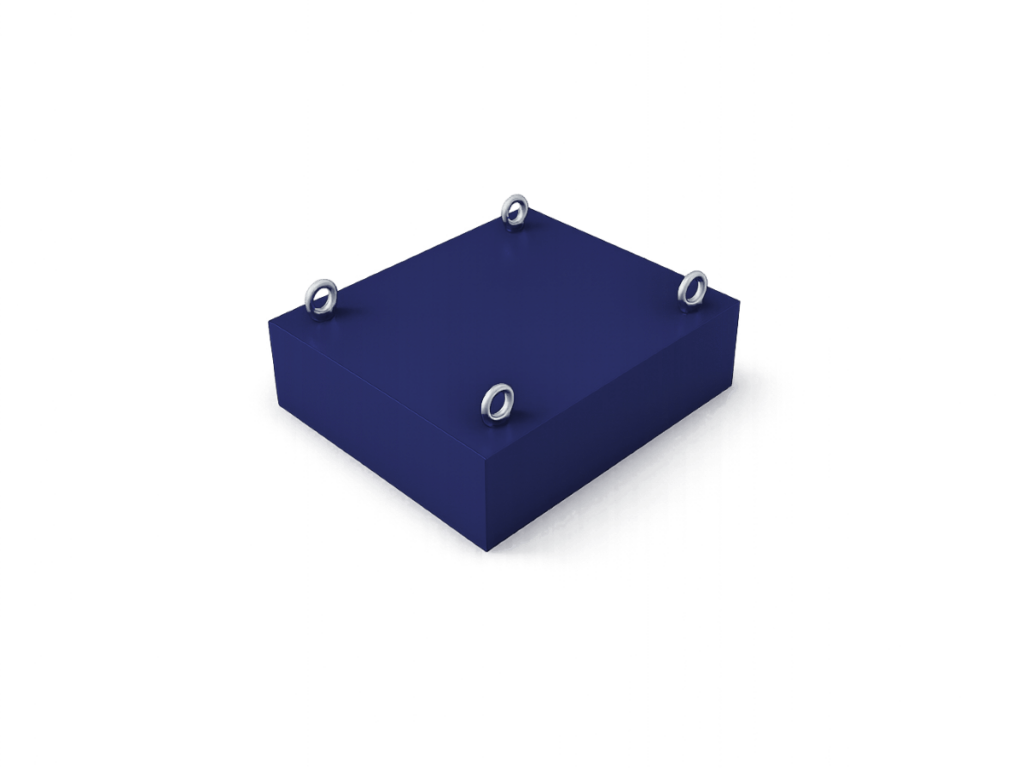

Permanent suspension block magnets

Permanent suspension block magnets are suitable for removing steel parts, primarily in the recycling industry or for mill protection. They can be installed up to 400 mm above the conveyor belt.

  • Max. installation height 400 mm
  • Captures Fe particles from 1 mm
  • Various dimensions and flange types
  • For belt width 400-1600 mm
  • Easy to install



For more information, please visit www.goudsmitmagnets.com

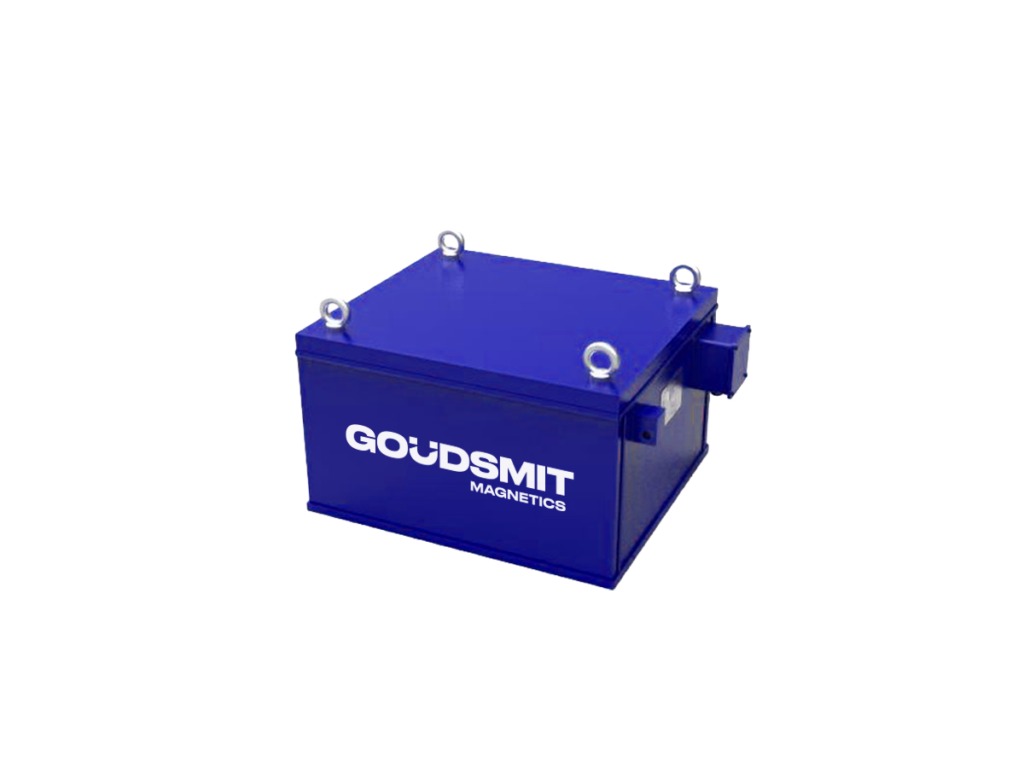

Electro suspension block magnets

Electro suspension block magnets are suitable for removing large steel parts from bulk flows or in the recycling industry. They are suitable for larger installation heights and can be turned on and off.

  • Max. installation height 400 mm
  • Manual ‘quick cleaning’
  • Can be turned on and off (electromagnet)
  • Power supply required
  • Max. temp. 80°C



For more information, please visit www.goudsmitmagnets.com
