Removes unwanted ferromagnetic particles
Goudsmit drum magnets are used for the automatic, continuous removal of iron-containing and even weakly magnetic impurities. Drum magnets – also referred to as magnetic drum separators – are suitable for product streams heavily contaminated with magnetic particles.
Goudsmit’s most powerful drum magnet offers a higher degree of separation for small weakly magnetic impurities compared to other types of magnetic separators.
- Continuous, automatic cleaning
- Magnetic segments in a rotating drum
- Captures Fe and weakly magnetic particles from 0.1 mm
- Capacity up to 300 m³/h
- Magnetic strength 3000/6000/9000/12000 gauss on the shell

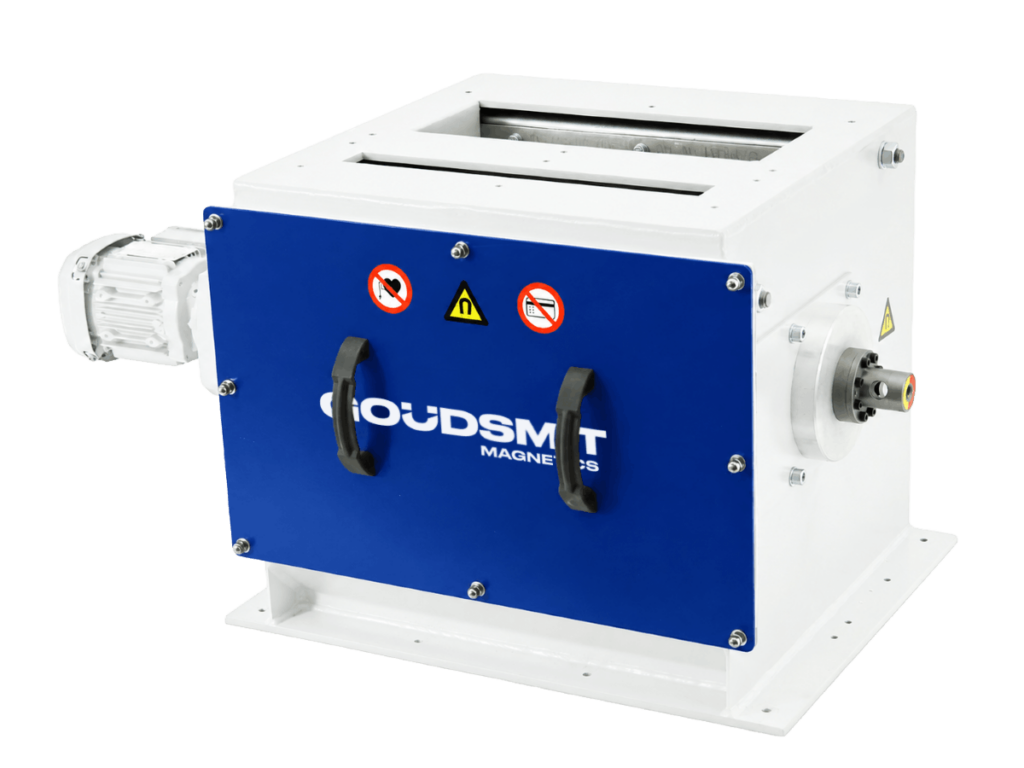

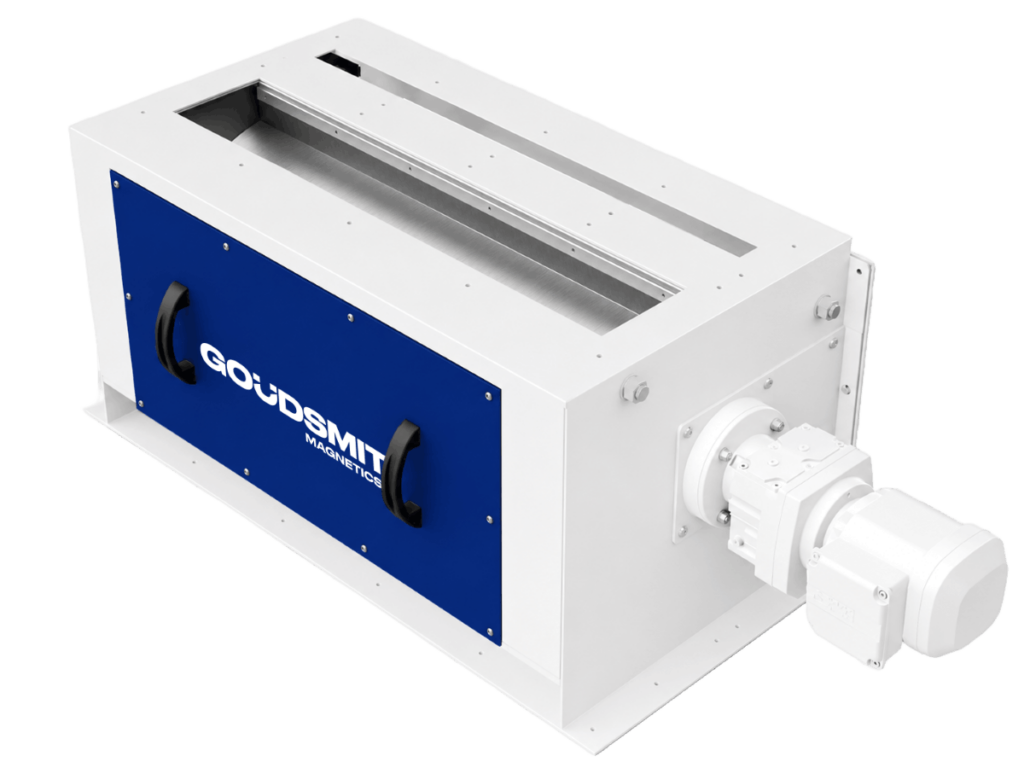

Magnetic drum separator in house, standard type
This type of magnetic drum separator features an industrial finish. It removes 0.5-5 mm iron-containing impurities from all types of non-food powders and granulates, fibers, or coarser raw materials in gravity chutes systems. They are equipped with a 3000 gauss magnetic drum.
- Suitable for recycling or metal separation
- Capacity up to 300 m³/h
- Adjustable magnetic field
- Continuous automatic cleaning
- Ferrite / neodymium magnet (3000 gauss on the shell)
Magnetic drum separator in house, “food” type
This type of magnetic drum separator is suitable for use in the food industry. A powerful neodymium magnetic drum removes small to very small iron-containing and weakly magnetic impurities from powders and granulates in gravity chutes systems. Hygienic design and finish.
- Removes Fe particles from 30 µm
- Max. particle size 50 mm
- Capacity up to 150 m³/h
- Stainless steel housing
- Magnetic strength 3000/6000/8000 gauss on the shell
Magnetic drum separator in housing, “pharma” type
These “Lenastar” pharma drum magnets are equipped with a 12,000 gauss magnetic drum. They remove iron particles from 0.2 µm and weakly magnetic particles from 0.1 mm from raw materials during the production process. The product flow does not need to be interrupted during cleaning.
“Lenastar” is designed in a highly hygienic manner, with a smooth and sloping surface, detachable parts, and water-repellent properties.
Captures weakly magnetic particles from 0.1 mm
Captures Fe particles from 0.2 µm
Max. particle size 10 mm
Stainless steel housing
Neodymium magnet (12,000 gauss on the shell)
